Find the perfect fit dropper post!
All dropper posts by comparison.
moveLOC 2
DROPPER POST
Unrivalled light, extremely strong and reliable.
MAXIMUM LOWERING
UP TO 200 MM TRAVEL
The moveLOC dropper is available in three different sizes.This enables you to fit the maximum seat post travel to your frame.
490 GRAMS
ULTRALIGHT
The moveLOC weighs in at 490 g (incl. remote) at 140 mm of travel. This makes the moveLOC at least 20 % lighter than other available dropper posts.

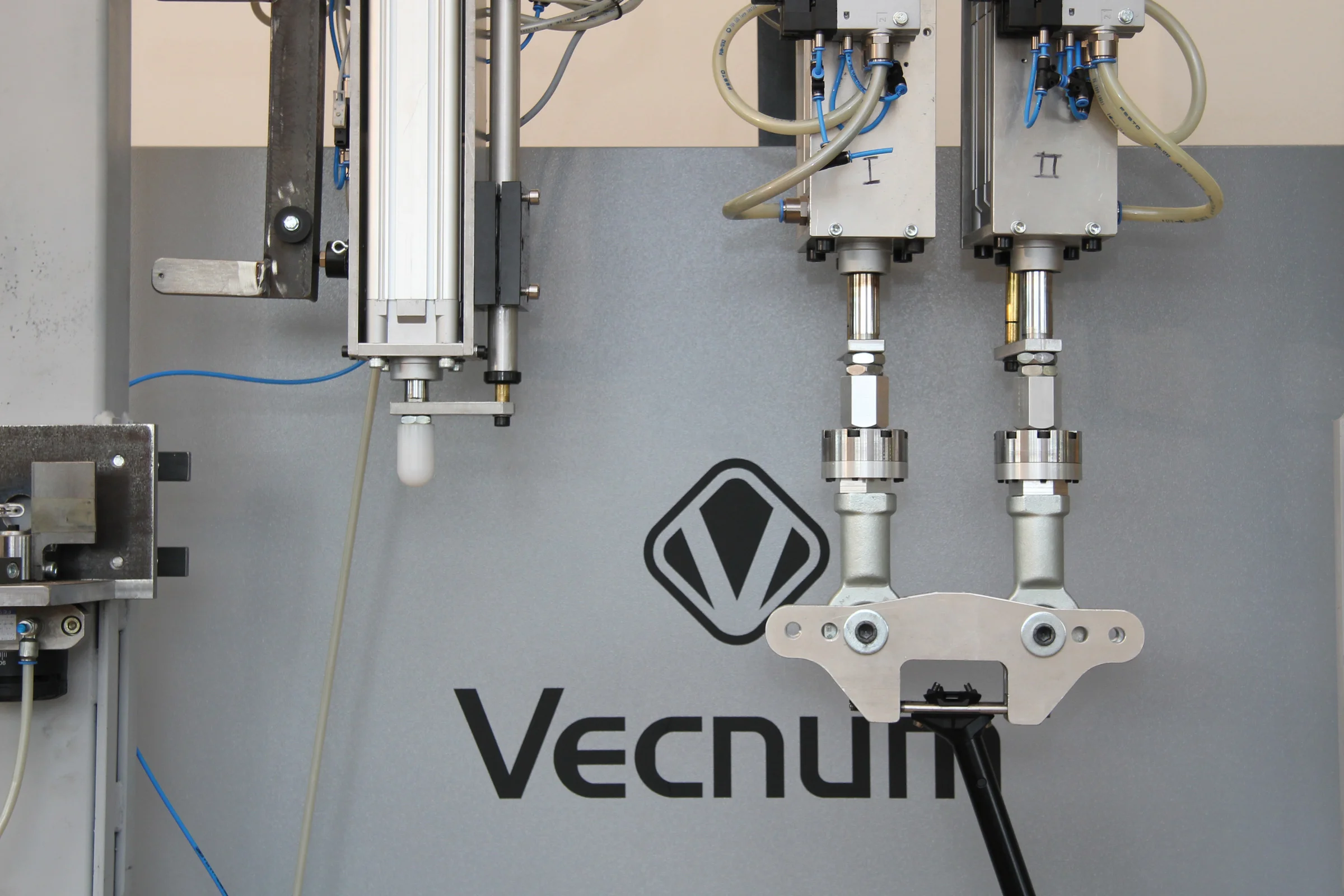

STRONG & PROVED
TEST BENCH & FIELD TESTING
The stability and low weight are consequences of intensive test bench runs & field testing. Our test bench equipment is located in-house, which allows us more extensive testing. To double-check the stability, the moveLOC was also proved by an independent testing laboratory (company Velotech) by passing the high Velotech.de-Q-2011-standard.

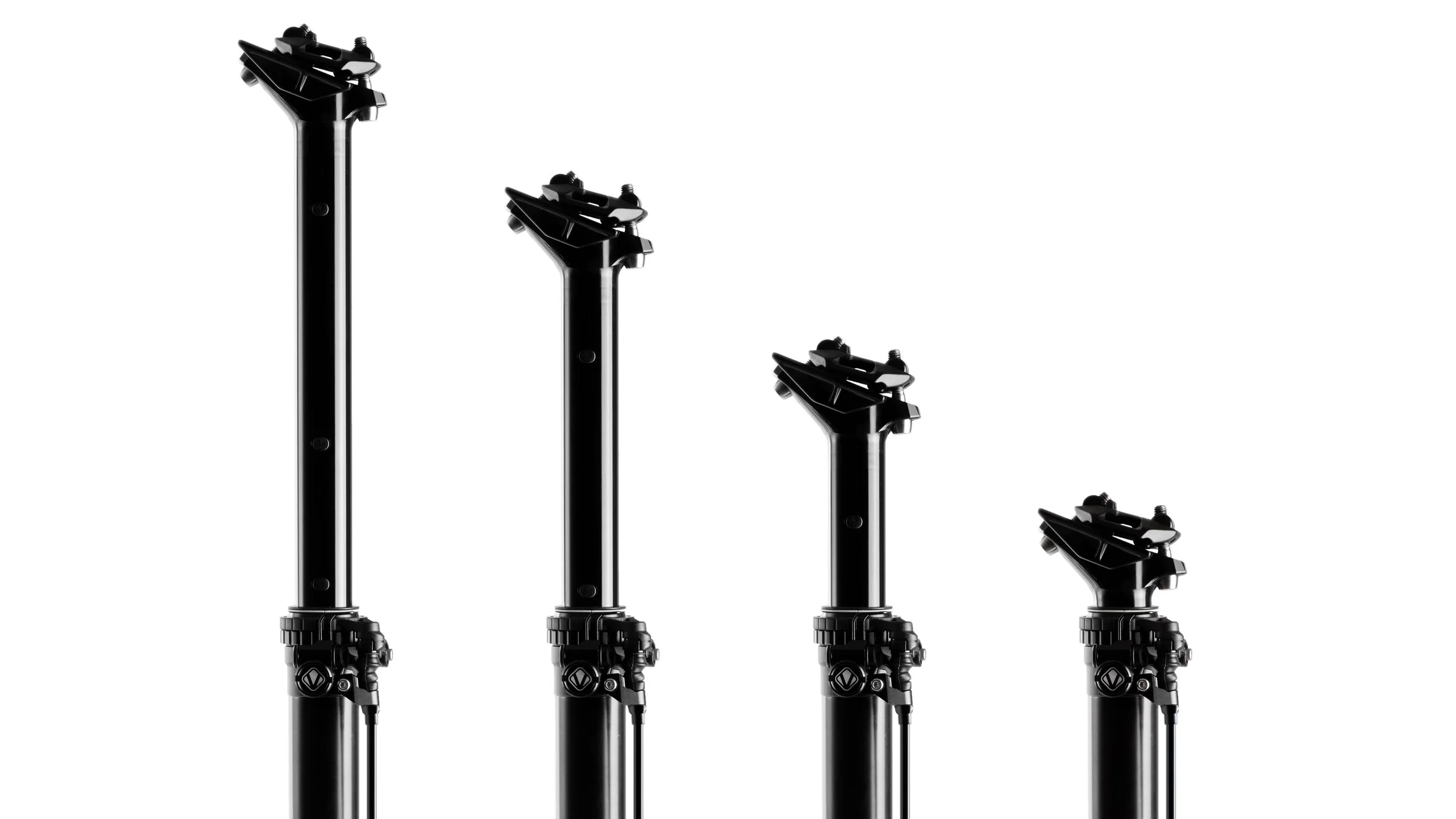

COMPATIBLE
TO ALL BIKES
The moveLOC is available with 200, 170 or 140 mm (140+170 mm no longer available) of travel. This offers the maximum range of movement to all riders and different frame sizes. There are shims available for a variety of seat post diameters.
.

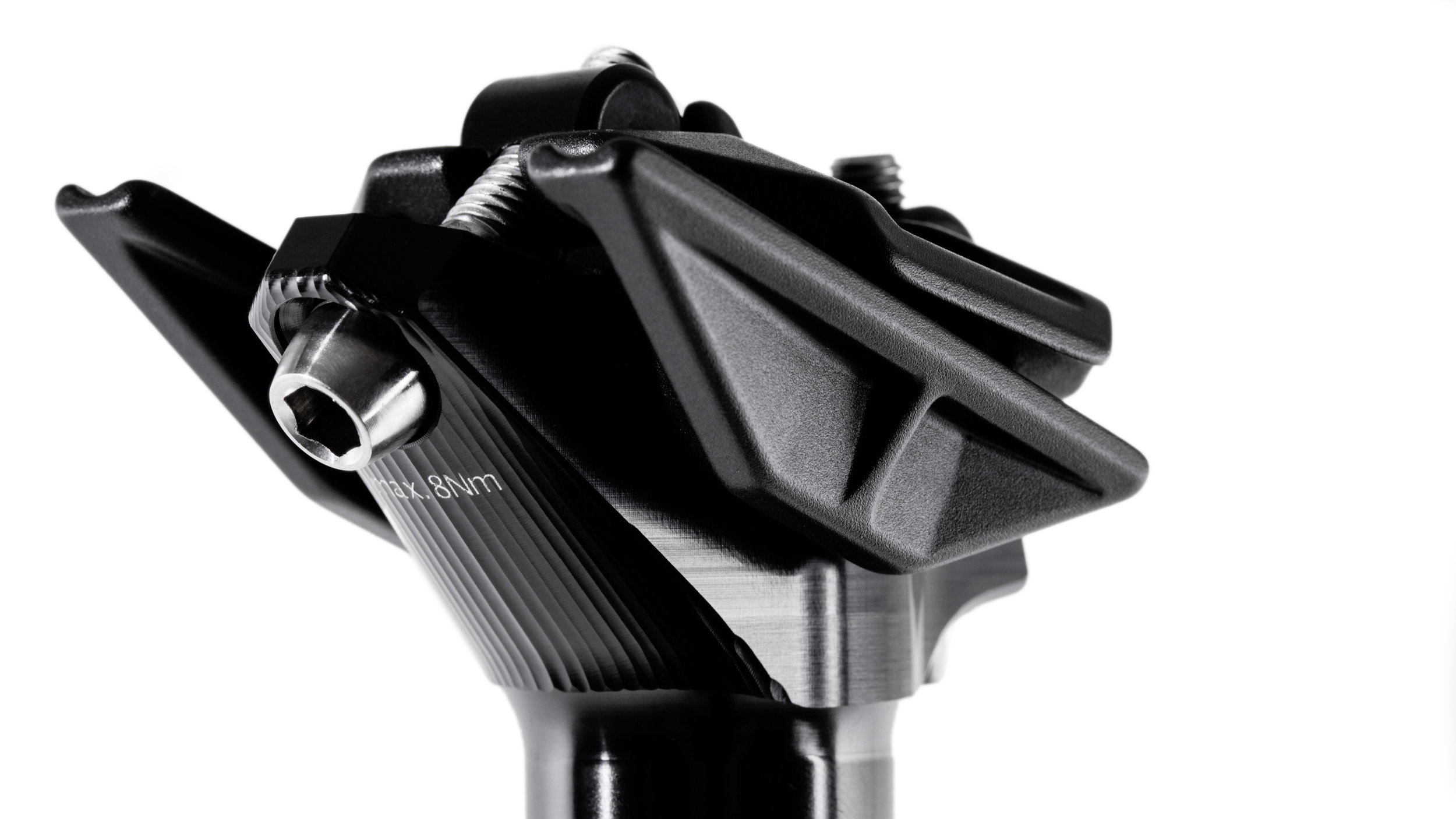

FLEXIBLE & LIGHT
SADDLE CLAMP WITH TITANIUM BOLTS
The saddle rail clamp is designed as a strong 2 bolt clamp. The clamping with two titanium bolts allows a broad adjustment range for the saddle lengthwise as well as for tilting.
LOW MAINTENANCE & RELIABILITY

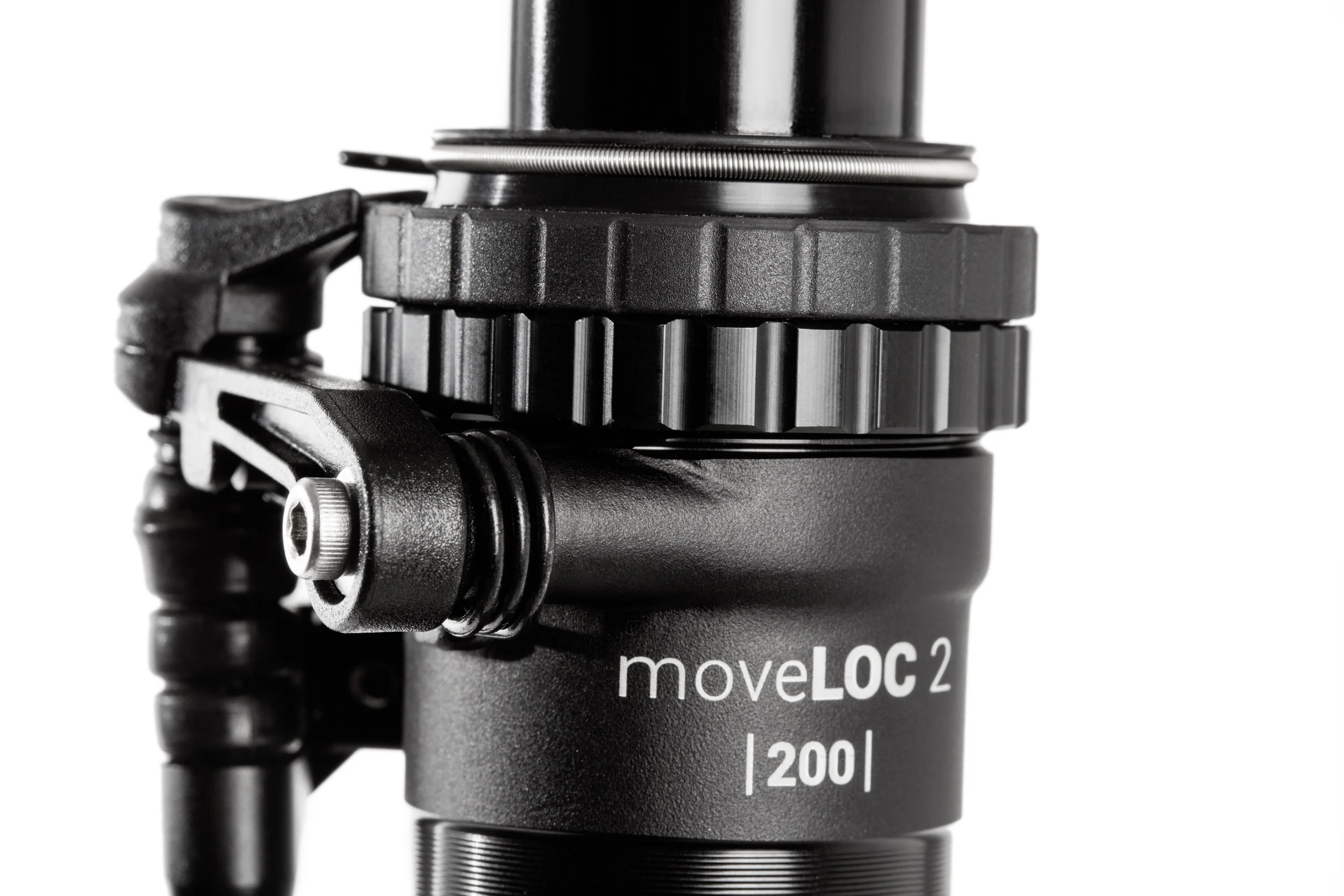

FAIL SAFE BUTTON
Robust Design: Lowering and fixing the post by the Fail Safe button is always possible, even without remote. The moveLOC 2.0 is designed to be mud resistant by a fully enclosed mechanic locking system. Low maintenance and excellent durability is guaranteed by using high performance materials.
FIXED CABLE ROUTING
EXTERNAL ACTUAtion
With the external actuation, a flexible and easy installation is guaranteed. You can remove the cable remote within seconds. In addition, the moveLOC dropper post is compatible to all MTB frames with a minimum inner seat tube diameter of 30,9 mm.
UNIVERSAL REMOTE
LIGHT & FLEXIBLE
The universal remote can be installed for left or right hand actuation and offers maximum flexibility. This remote type should be your choice, if you use a bike with front derailleur.
At only 19 grams incl. handle bar clamp, the remote is very light weight.
By being made from 7075 aluminum alloy, the design is incredible robust.
moveLOC 2 - What's NEW
all details
All details about the updates are summerized here.
ERGONOMIC
REMOTE
The moveLOC 2 is available with the universal remote as well as with the new trigLOC remote in shifter style design
TECHNICAL DATA
DROPPER POST moveLOC 2
SCOPE OF SUPPLY
1 x moveLOC dropper post
1 x remote (universal or trigLOC incl. 1.4m bowden cable)
1 x accessories (zipties / bowden cable holder/ manual)
INFO & COMPATIBILITY
The moveLOC 2 dropper post can be used with all MTB Frames, which come with a seat post inner diameter of 30,9 / 31,6 / 34,9 mm
Use our CONFIGURATOR to find the right length for your bike
DIMENSIONS & TECHNICAL DATA
| Typ moveLOC | moveLOC 140* | moveLOC 170* | moveLOC 200 |
|---|---|---|---|
| Travel [mm] | 140 | 170 | 200 |
| Dropper post Weight [g] 1 |
440 | 473 | 509 |
| Universal / trigLOC Remote [g] |
19 / 17 | 19 / 17 | 19 / 17 |
| 140cm, unshortened Bowden cable [g] |
30 | 30 | 30 |
| Index Positions [mm] | 0 / 40 / 90 / 140 | 0 / 40 / 100 / 170 | 0 / 40 / 100 / 200 |
| A [mm] A | 215 | 245 | 275 |
| B [mm] B | 208 | 238 | 268 |
| C [mm] C | 423 | 483 | 543 |
| D [mm] D | 300 | 330 | 360 |
| Minimum Insert [mm] | 123 | 153 | 183 |
| Outer Diameter [mm] 2 | 30,9 | ||
| Maximum Rider Weight | 120kg | ||
| Material | main part made from 3D forged aluminium 7075 | ||
| Surface finsih | black anodizied / guiding hard coated | ||
| Bowden cable | standard shifting cable with plastic housing | ||
| Gas spring | pressure range 200-300PSI, refillable with standard shock pump | ||
| Adapter shim | Ø 31.6mm | Length 120mm | Weight 11g bzw. Ø 34.9mm | Length 140mm | Weight 36g | ||
| Rail Clamp | tilting range +/-8.5°, sliding area depends on saddle rails | ||
| Saddle rail clamp | 2 pcs. M6x30 Titanium -Allen bolt | ||
| Warranty | 2 Jahre, terms of guarantee | ||
* No longer available
1 Weight excluding remote
2 Adaption for inner seat post diameter 31.6mm / 34.9mm with reducing shims

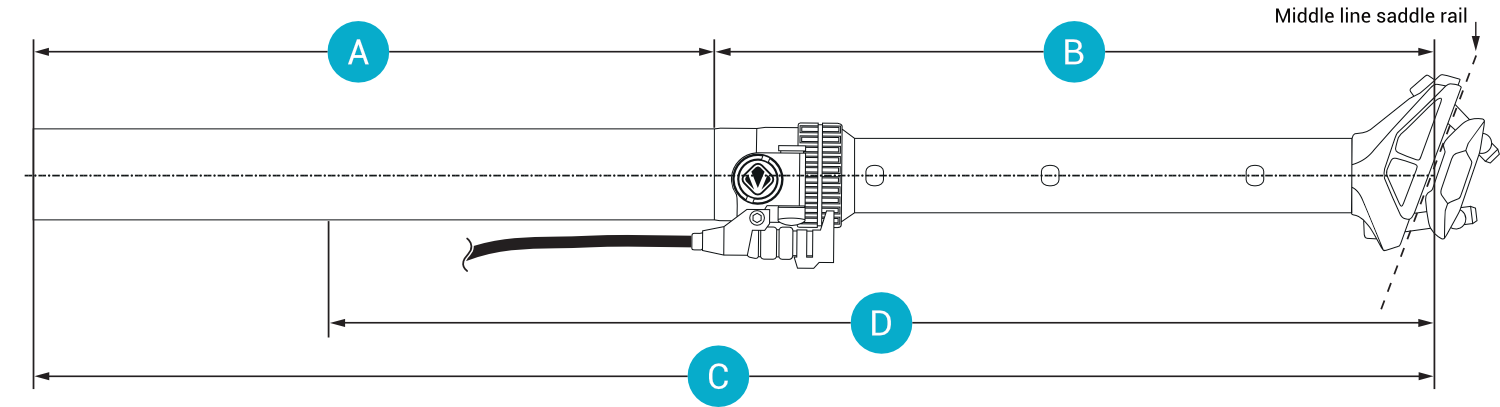

A Depth of insertion into the seatpost tube: If your frame doesn't provide this length, you have to add the missing value to length B, because you can not insert the post completly into the seat post tube
B Extended length: middle saddle rail to upper edge seat post tube. This is the minimum value which has to exist. The maximum distance is the max. extension length
C Total length of dropper post
D Maxiumum extension length dropper post
3D FORGING & 3D MILLING
AT ITS BEST
